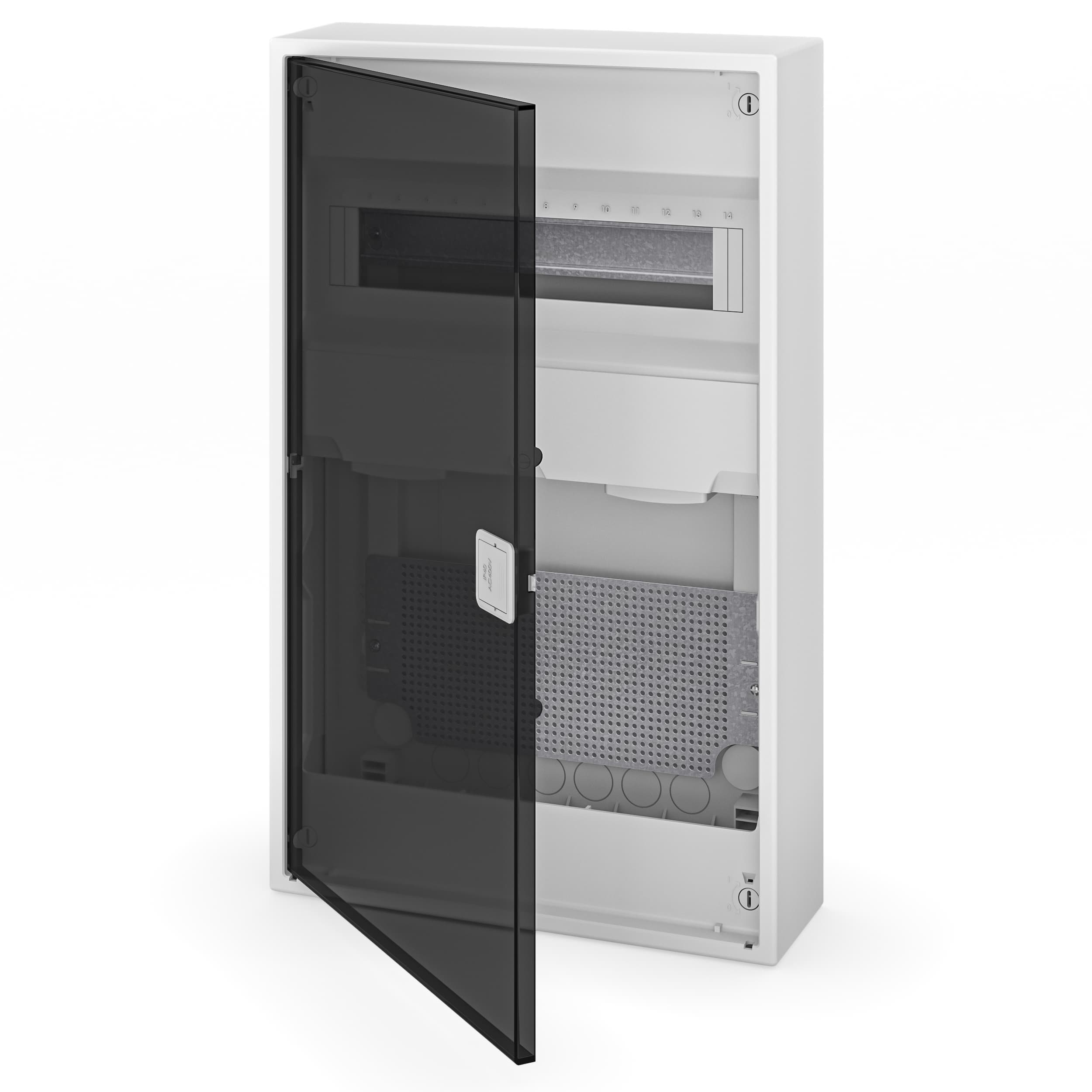

N36ALFA 3/1

N36ALFA 3/1

TypeSurface mounting
Dimensions501 x 310 x 96
Number of modules12+2
N, PE terminal count2x10

Door color

IP40
IK07
Protection Class II
AC 400 V
Glow Wire 650°C
Indoor Use
Surface Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Insulated terminal for grounding and neutral*
  • Partition with integrated socket
  • Blank Space Cover
  • Mounting Plate
  • Installation accesories
  • IP40 protective caps
  • Assembly instructions

*Additional terminal upon request

Comes with

Insulated DIN Rail, standard

INSULATED TERMINAL, STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Blank Space Cover / PP

BLANK SPACE COVER

Material: PP Color: RAL 7035 / RAL 9003

MOUNTING PLATE STEEL

MOUNTING PLATE FOR ALFA ENCLOSURES

For series: IT & COMBO ALFA Material: Stainless steel Height: 110mm Installation: one mounting plate per row

Optional

Wi-Fi Router Bracket

HOLDER FOR WI-FI ROUTER

Material: PC Dimensions: 91 x 47 x 20 mm

Double Socket with Bracket for IT Panel

DOUBLE SOCKET OUTLET

With holder For IT mounting plate 16 A, 250 V~

Patch Panel

PATCH PANEL FOR 12 RJ45 MODULES

Indexing dimension ( W x H ) 15 x 20 mm * other dimensions available on request

Lock with Key

E, F, ALFA SERIES ENCLOSURE LOCK

Insulated terminal / 25mm²

INSULATED TERMINAL l / 25 mm²

Flammability: Self- extinguish Glow wire test: 960 ˚C For enclosures of 12 modules or more

Insulated DIN Rail, double

INSULATED TERMINAL, DOUBLE

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Insulated DIN Rail, Australian standard

INSULATED TERMINAL, AUSTRALIAN STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more
