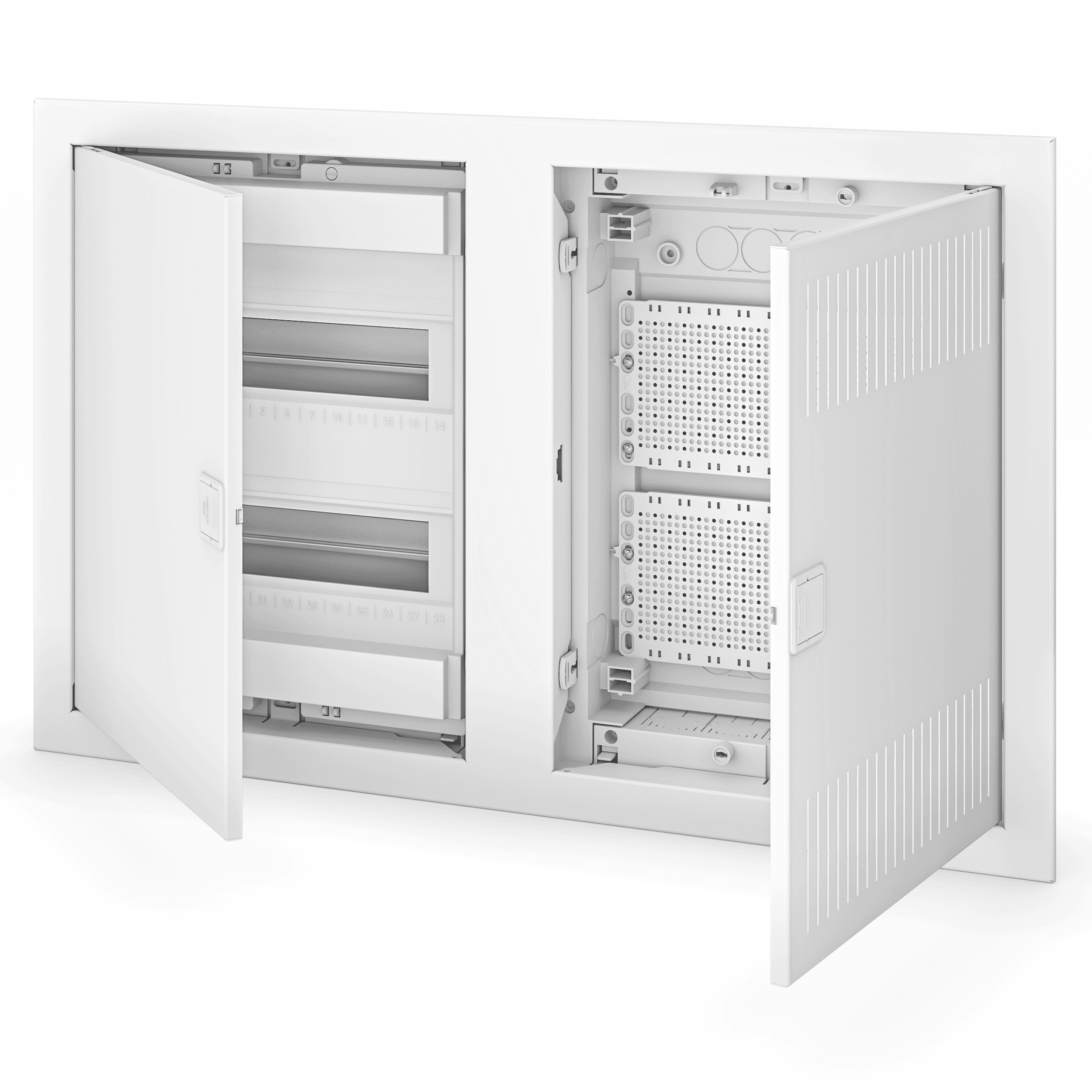

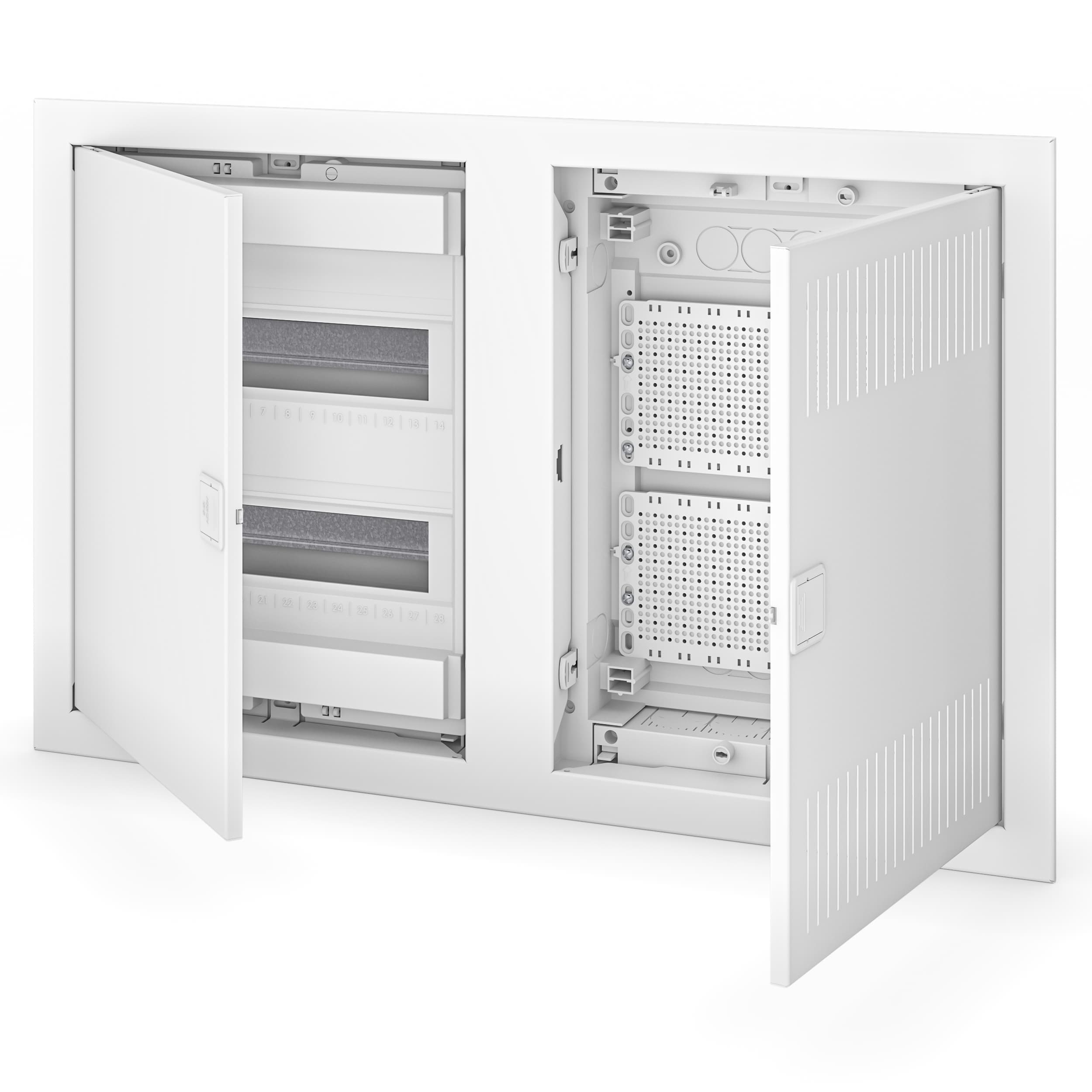

U2x24E COMBO

U2x24E COMBO

TypeFlush mounting
Dimensions442 x 692 x 96
Number of modules24+4
N, PE terminal count2x15
IP30
IK08
Protection Class I
AC 400 V
Glow Wire 650°C
Glow Wire 850°C
Indoor Use
Flush Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Insulated terminal for grounding and neutral
  • Partition with integrated socket
  • Blank Space Cover
  • Mounting Plate
  • Mounting accessories
  • Installation and usage instructions

* Additional terminal upon request

Comes with

Insulated DIN Rail, standard

Insulated Terminal, Standard

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Blank Space Cover / PP

Blank Space Cover, Material PP

Material: PP; Color: RAL 7035 / RAL 9003

MOUNTING PLATE PLASTIC

Mounting Plate Perforated, Material PS

For series: IT, E, F, COMBO; Material: PS; Height: 110 mm; Instalation: One mounting plate per row

CONNECTION BRACKET HOR 2

Connection Bracket Horizontal 2

For series: E, F, F ME and COMBO; Material: PA; Dimensions: 127 x 23 x 13 mm

Housing Connector, vertical joint

Connection Bracket, Horizontal

For series: E, F, F ME, and COMBO; Material: PS; Dimensions: 48 x 24 x 33 mm

Optional

Insulated DIN Rail, double

Insulated Terminal, Double

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Insulated DIN Rail, Australian standard

Insulated terminal, Australian standard

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Insulated DIN Rail, screwless

Insulated Terminal, Screwless

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Insulated terminal / 25mm²

Insulated Terminal / 25mm²

Flammability: Self- extinguish; Glow wire test: 960 ˚C; For enclosures of 12 modules and more

Lock with Key

Lock for Enclosures 3

For series E, F, F ME, ALFA

Double Socket with Bracket for IT Panel

Double Socket Outlet

With holder; For IT mounting plate; 16A, 250V~
