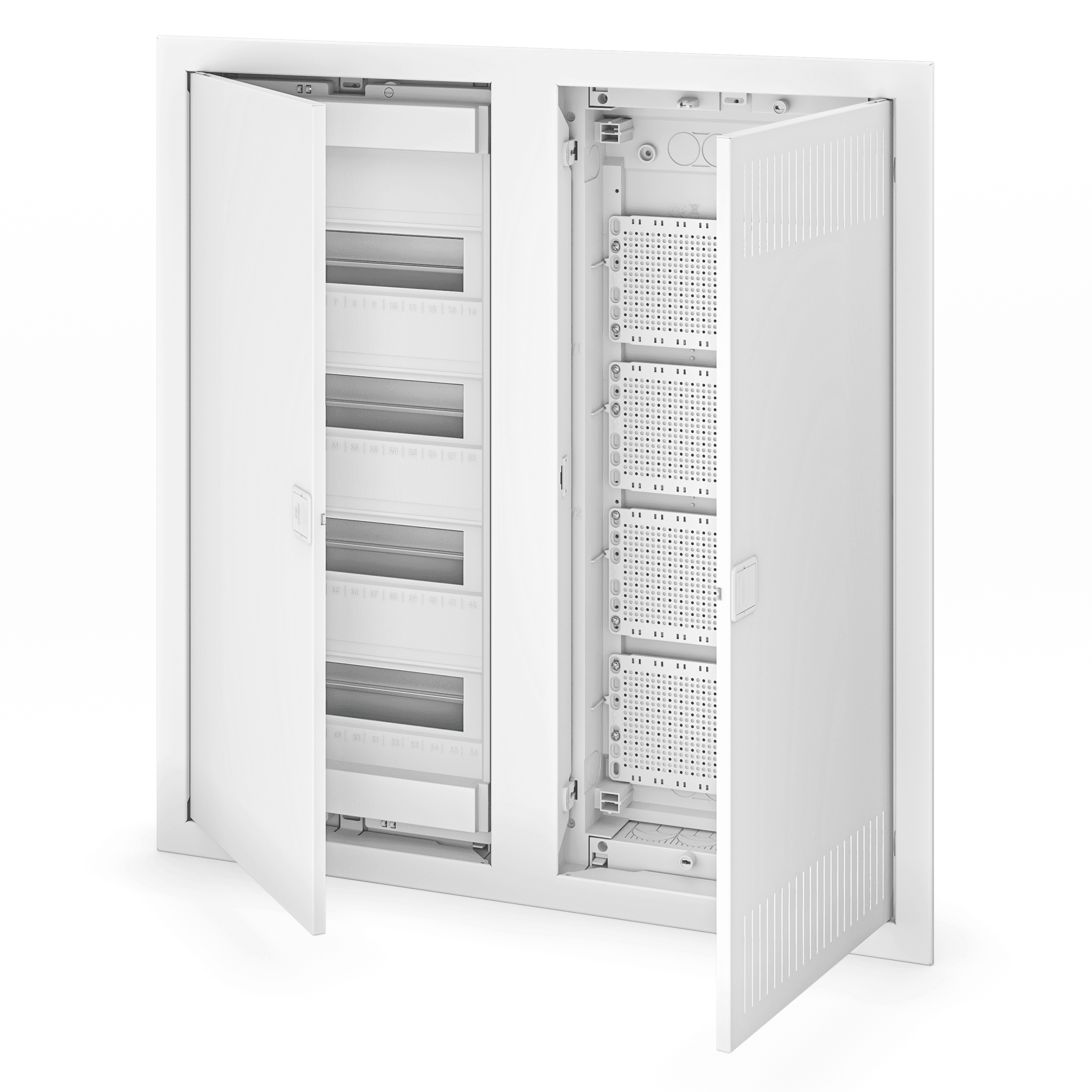

U2x48E COMBO

U2x48E COMBO

TypeFlush mounting
Dimensions717 x 692 x 96
Number of modules48+8
N, PE terminal count2x20
IP30
IK08
Protection Class I
AC 400 V
Glow Wire 650°C
Glow Wire 850°C
Indoor Use
Flush Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Insulated terminal for grounding and neutral
  • Partition with integrated socket
  • Blank Space Cover
  • Mounting plate
  • Mounting accessories
  • Installation and usage instructions

* Additional terminal upon request

Comes with

PARTITION WITH INTEGRATED SOCKET

Partition With Integrated Socket

For series E COMBO and F COMBO

Insulated DIN Rail, standard

Insulated Terminal, Standard

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Housing Connector, vertical joint

Connection Bracket, Horizontal

For series: E, F, F ME, and COMBO; Material: PS; Dimensions: 48 x 24 x 33 mm

CONNECTION BRACKET HOR 2

Connection Bracket Horizontal 2

For series: E, F, F ME and COMBO; Material: PA; Dimensions: 127 x 23 x 13 mm

Optional

Wi-Fi Router Bracket

Holder for Wi- Fi Router

Material: PP; Dimensions: 91 x 47 x 20 mm

Double Socket with Bracket for IT Panel

Double Socket Outlet

With holder; For IT mounting plate; 16A, 250V~

Lock with Key

Lock for Enclosures 3

For series E, F, F ME, ALFA

Patch Panel

Patch Panel for 12 RJ45 modules

Indexing dimension ( W x H ) 15 x 20 mm; * different dimensions possible upon request

Housing Connector, vertical joint

Connection Bracket, Horizontal

For series: E, F, F ME, and COMBO; Material: PS; Dimensions: 48 x 24 x 33 mm

Insulated DIN Rail, screwless

Insulated Terminal, Screwless

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Insulated DIN Rail, double

Insulated Terminal, Double

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more
