U36F 3/1

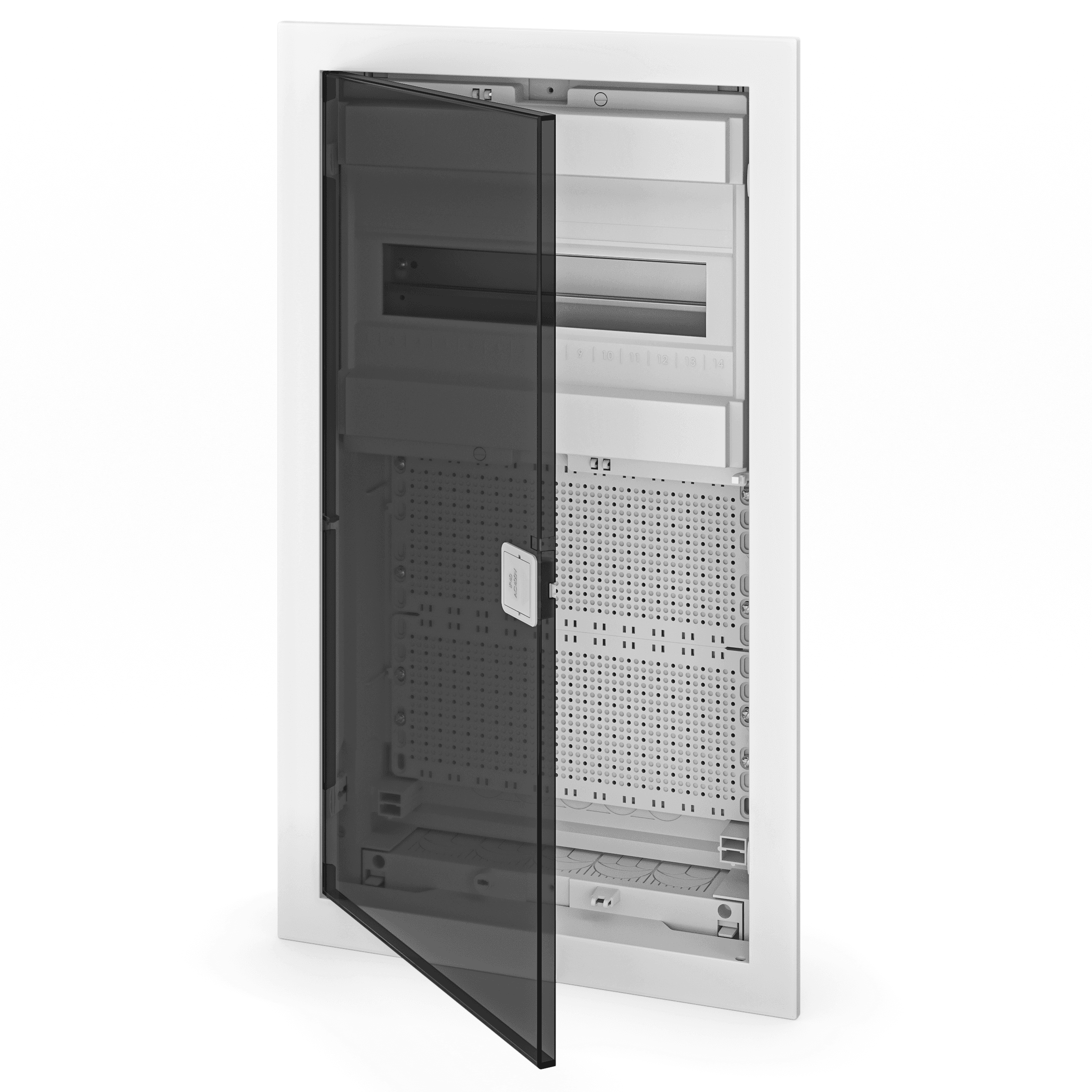

U36F 1/3
U36F 3/1
U36F 1/3

U36F 3/1

TypeFlush mounting
Dimensions592 x 346 x 96
Number of modules12+2
N, PE terminal count2x10

Door color

IP40
IK08
Protection Class I
AC 400 V
Glow Wire 650°C
Glow Wire 850°C
Indoor Use
Flush Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Insulated terminal for grounding and neutral
  • Partition with integrated socket
  • Blank Space Cover
  • Mounting Plate
  • Mounting accessories
  • Installation and usage instructions

* Additional terminal upon request

Comes with

Insulated DIN Rail, standard

Insulated Terminal, Standard

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

PARTITION WITH INTEGRATED SOCKET

Partition With Integrated Socket

For series E COMBO and F COMBO

Blank Space Cover / PP

Blank Space Cover, Material PP

Material: PP; Color: RAL 7035 / RAL 9003

MOUNTING PLATE PLASTIC

Mounting Plate Perforated, Material PS

For series: IT, E, F, COMBO; Material: PS; Height: 110 mm; Instalation: One mounting plate per row

Optional

Double Socket with Bracket for IT Panel

Double Socket Outlet

With holder; For IT mounting plate; 16A, 250V~

Wi-Fi Router Bracket

Holder for Wi- Fi Router

Material: PP; Dimensions: 91 x 47 x 20 mm

Patch Panel

Patch Panel for 12 RJ45 modules

Indexing dimension ( W x H ) 15 x 20 mm; * different dimensions possible upon request

Lock with Key

Lock for Enclosures 3

For series E, F, F ME, ALFA
