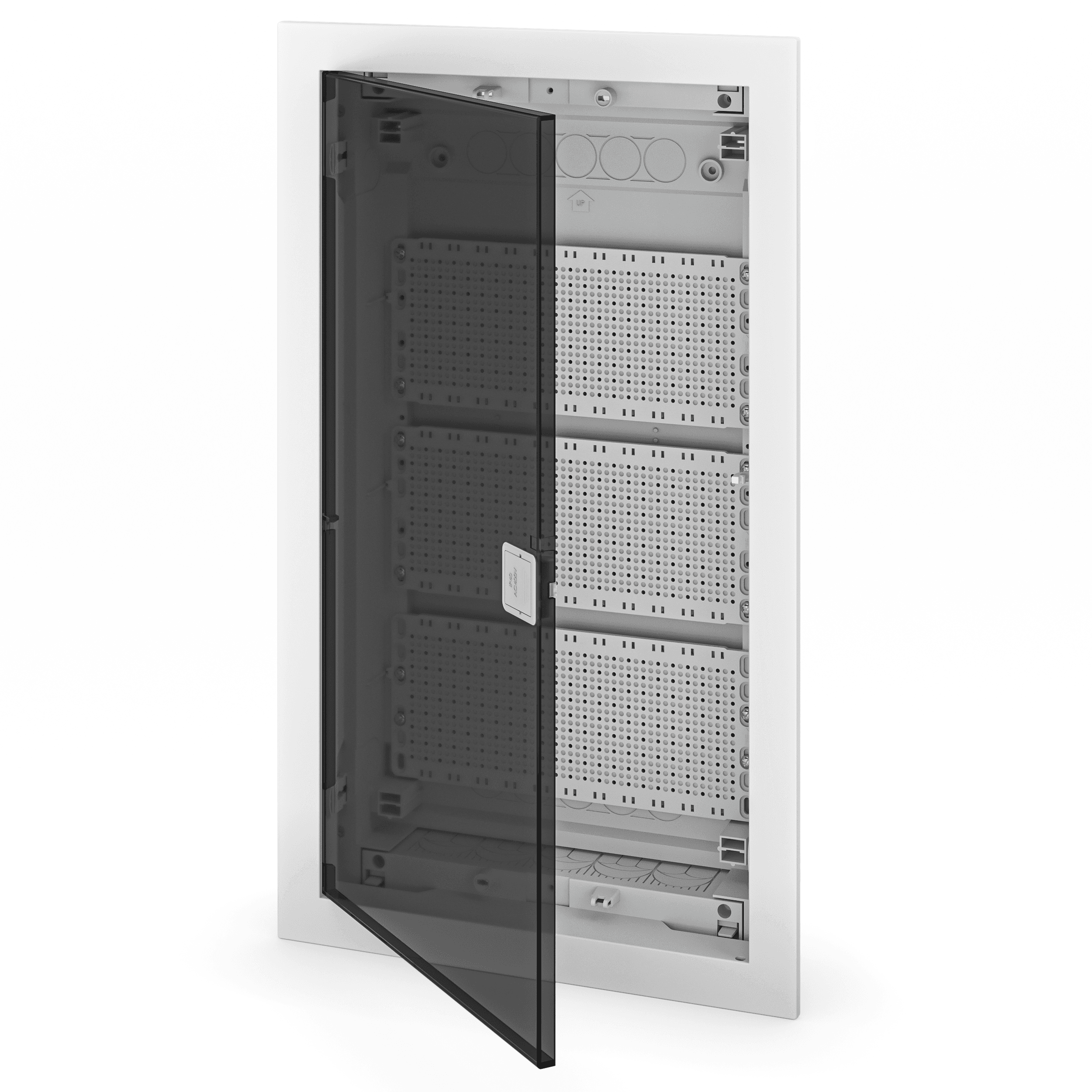

U36F IT
U36F IT
U36F IT
U36F IT

U36F IT

TypeFlush mounting
Dimensions592 x 346 x 96
Number of modules/
N, PE terminal count/

Door color

IP40
IK07
Glow Wire 650°C
Protection Class II
AC 400 V
Indoor Use
Flush Mounting
EU Compliance

Distribution boards come equipped with all necessary parts for installation:

  • Mounting plate
  • Mounting accessories
  • Installation and usage instructions

* Additional terminal upon request

Comes with

MOUNTING PLATE PLASTIC

Mounting Plate Perforated, Material PS

For series: IT, E, F, COMBO; Material: PS; Height: 110 mm; Instalation: One mounting plate per row

Optional

Wi-Fi Router Bracket

Holder for Wi- Fi Router

Material: PP; Dimensions: 91 x 47 x 20 mm

Double Socket with Bracket for IT Panel

Double Socket Outlet

With holder; For IT mounting plate; 16A, 250V~

Lock with Key

Lock for Enclosures 3

For series E, F, F ME, ALFA

Housing Connector, horizontal joint

Connection Bracket, Vertical

For series E, F, F ME i COMBO; Material: PS; Dimensions: 18 x 48 x 155 mm

Housing Connector, vertical joint

Connection Bracket, Horizontal

For series: E, F, F ME, and COMBO; Material: PS; Dimensions: 48 x 24 x 33 mm

Patch Panel

Patch Panel for 12 RJ45 modules

Indexing dimension ( W x H ) 15 x 20 mm; * different dimensions possible upon request

TRIPLE SOCKET OUTLET

Triple Socket Outlet

Integrated into the removable base side

CONNECTION BRACKET HOR 2

Connection Bracket Horizontal 2

For series: E, F, F ME and COMBO; Material: PA; Dimensions: 127 x 23 x 13 mm
