U 60 5/3 E

  • DIN rail
  • Insulated terminals, neutral and ground
  • Cover for blank space
  • Installation accessories
  • Mounting plates for IT equipment
  • Manual instruction
  • * Additional terminal upon request
Material ABS
Color RAL 9003
Door Metal
Color Bela
Glow wire test 650°C standard / 850°C premium
Terminal holder Self extinguish material
Glow wire test 960°C
Temperature -25°C / +60°C
Rated voltage AC 400V
Halogen free Yes

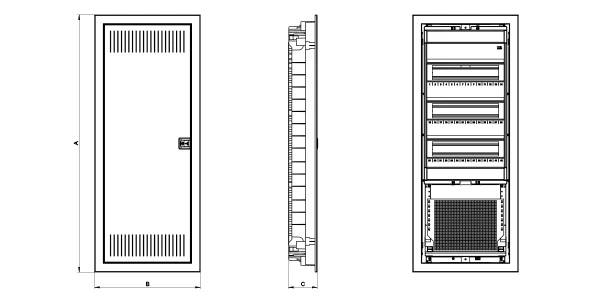

A 842 mm
B 346 mm
C 94 mm
D 87 mm
E 799 mm
F 306 mm

Included

Partition with integrated socket

Included

Insulated terminal, standard

Included

Connection bracket horizontal

Optional

Holder for WiFi router

Optional

Double socket outlet with holder

Optional

Lock for enclosures

Optional

Pacth panel

Optional

Connection bracket vertical

Optional

Insulated screwless terminal

Optional

Insulated terminal, Double

Optional

Insulated terminal, Australian type
