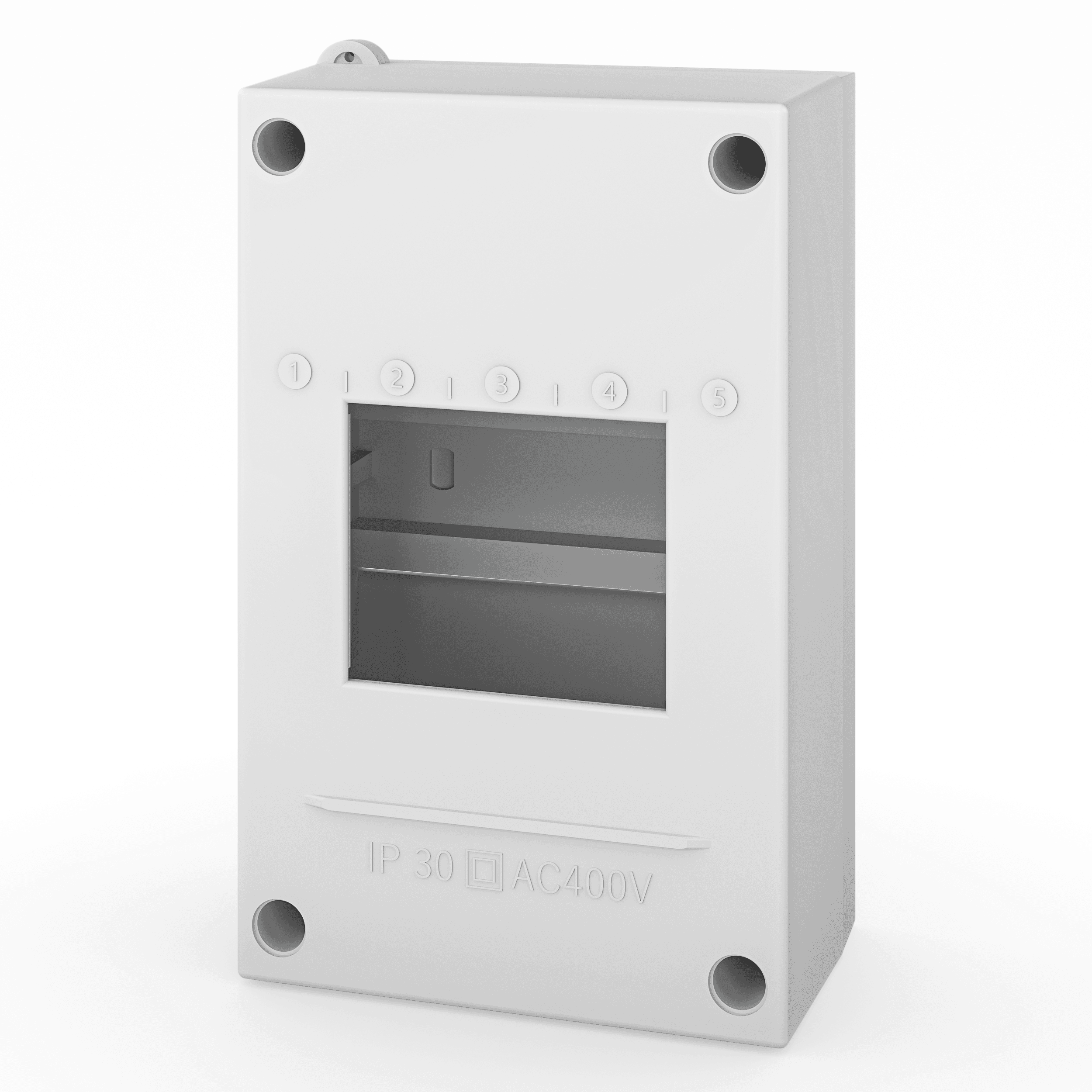

N3A
TypeSurface mounting
Dimensions154 x 98 x 58
Number of modules3+2
N, PE terminal count2x4
Purpose and installation
| Indoor use |  |
| Outdoor |  |
| Ambient temperature | -25°C to +60°C |
| Mounting type | Surface mounting |
Voltage / Current
| Rated voltage | 400 V a.c. |
| Rated current | 63 A |
Safety
| Protection against electric shock | Class II |
| Protection against external mechanical impacts | IK07 |
| Protection against ingress of solid objects and water | IP30 |
| Tested according to standard | / |
Capacity
| Number of modules | 3+2 |
| Number of DIN rails | 1 |
| N, PE terminal | 2x4 |
| Blank space cover | |
Material
| Box | PS |
| Mask | ABS, RAL 9003 |
| Door | / |
| UV stability | / |
Heat and fire resistance
| Glow wire test of base | 650°C |
| Glow wire test of terminal holder | 960°C |
Dimensions (mm)
| A | 154 |
| B | 98 |
| C | 58 |
Comes with
Blank Space Cover, Material PP
Material: PP; Color: RAL 7035 / RAL 9003
Insulated Terminal, Standard
Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more
