N 48 ALFA

  • DIN rail
  • Insulated terminals, neutral and ground
  • Cover for blank space
  • Installation accessories
  • IP40 protection caps
  • Manual instruction
  • * Additional terminal upon request
Material ABS
Color RAL 9003
Door PC / ABS
Color Transparent & White
Glow wire test 650°C
Terminal holder Self extinguish material
Glow wire test 960°C
Temperature -25°C / +60°C
Rated voltage AC 400V
According to IEC 60670 / IEC 62208
Halogen free Yes

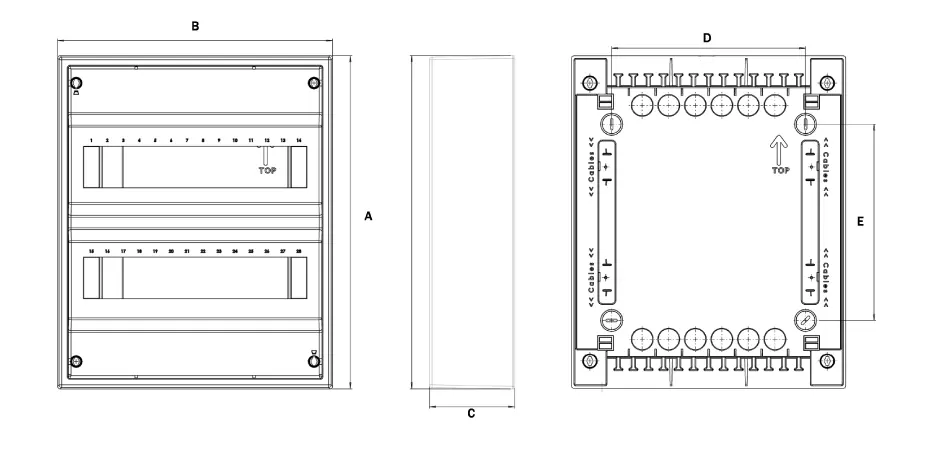

A 650 mm
B 310 mm
C 96 mm
D 219 mm
E 472 mm

Included

Cover for the empty place / PP

Included

Insulated terminal, standard

Optional

Insulated terminal, Double

Optional

Insulated terminal, Australian type

Optional

Insulated screwless terminal
