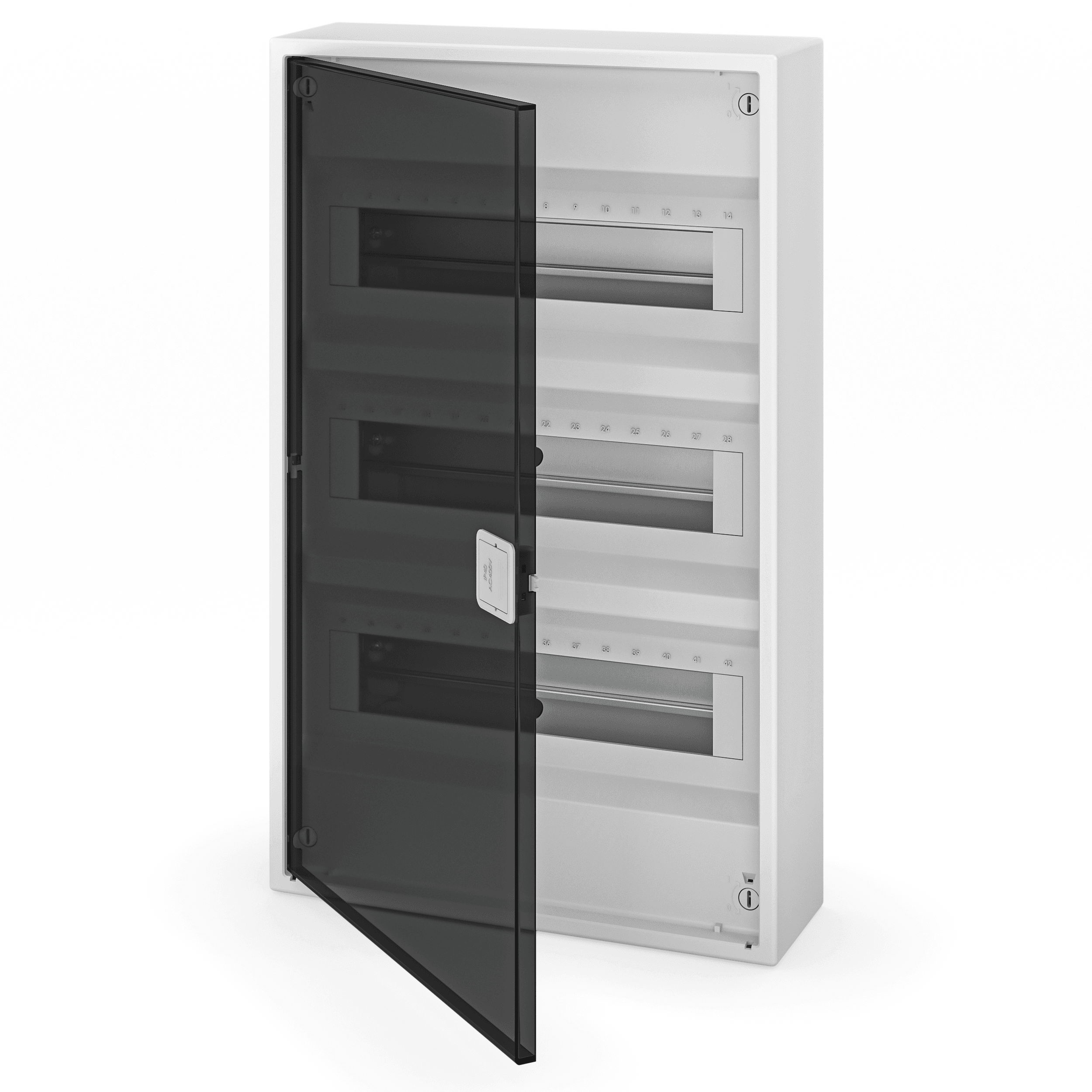

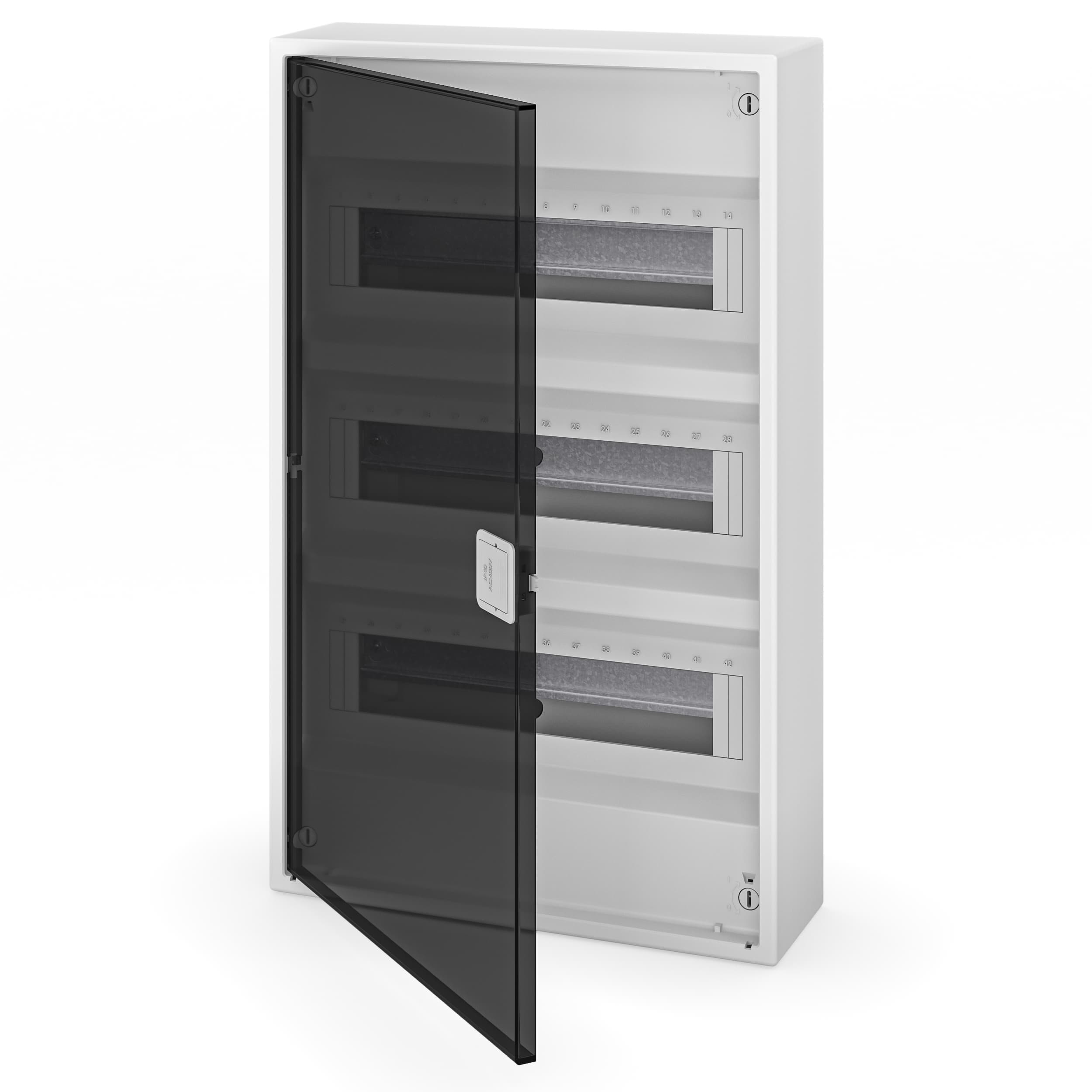

N36ALFA

N36ALFA

TypeSurface mounting
Dimensions501 x 310 x 96
Number of modules36+6
N, PE terminal count2x15

Door color

IP40
Protection Class II
IK07
AC 400 V
Glow Wire 650°C
Indoor Use
Surface Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Inslated terminal for grounding and neutral*
  • Blank space cover
  • Installation accessories
  • IP40 protective caps
  • Assembly instructions

* Additional terminal upon request

Comes with

Blank Space Cover / PP

BLANK SPACE COVER

Material: PP Color: RAL 7035 / RAL 9003

Insulated DIN Rail, standard

INSULATED TERMINAL, STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Optional

Insulated DIN Rail, double

INSULATED TERMINAL, DOUBLE

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Insulated DIN Rail, Australian standard

INSULATED TERMINAL, AUSTRALIAN STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Insulated terminal / 25mm²

INSULATED TERMINAL l / 25 mm²

Flammability: Self- extinguish Glow wire test: 960 ˚C For enclosures of 12 modules or more

Lock with Key

E, F, ALFA SERIES ENCLOSURE LOCK
