U48C
U36C
U48C
U36C

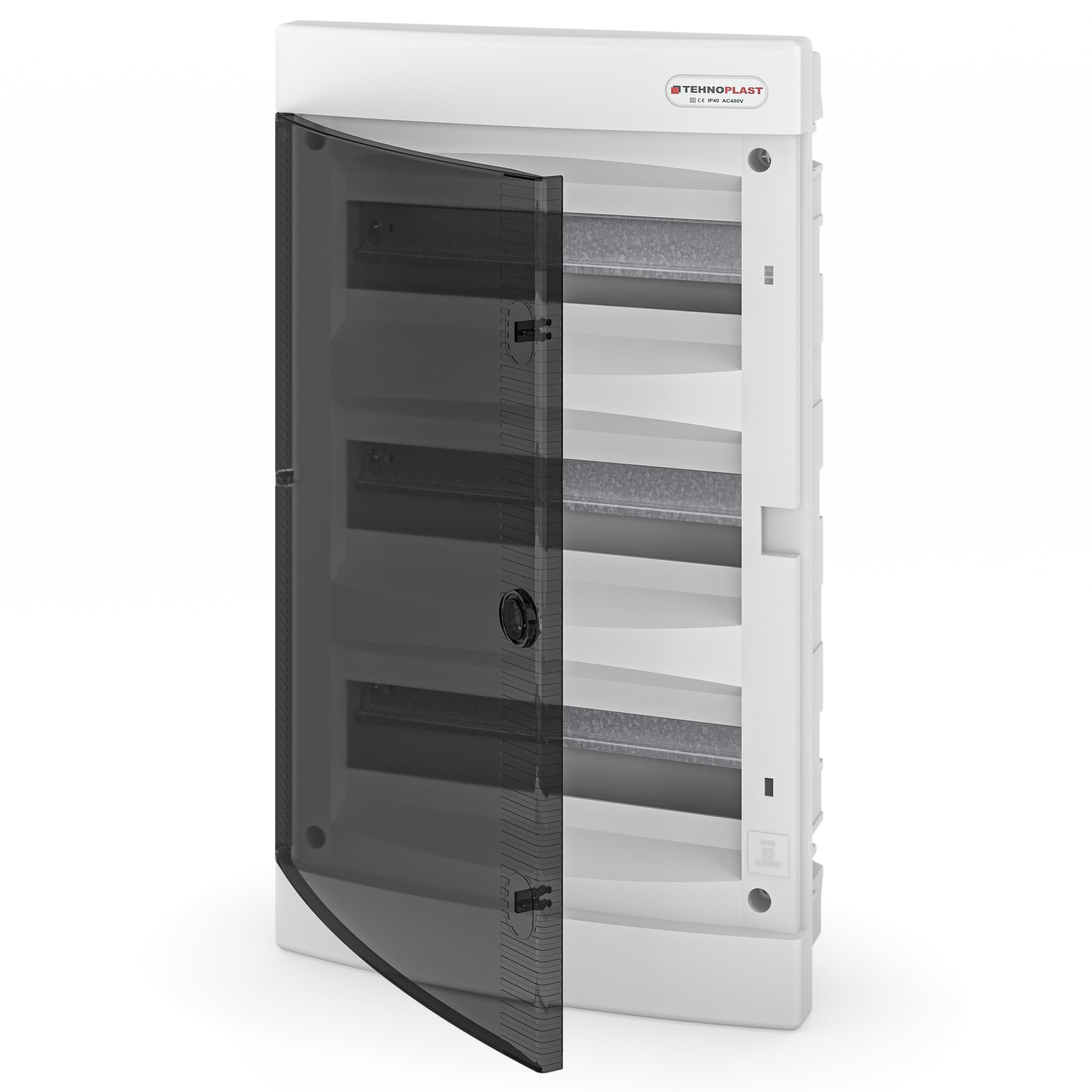

U36C

TypeFlush mounting
Dimensions482 x 283 x 106
Number of modules36
N, PE terminal count2x15

Door color

IP40
IK07
Protection Class II
AC 400 V
Glow Wire 650°C
Indoor Use
Flush Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Insulated terminal, neutral and ground*
  • Blank space cover
  • Mounting accessories
  • Assembly instruction

* Additional terminal upon request

Comes with

Blank Space Cover / PP

BLANK SPACE COVER

Material: PP Color: RAL 7035 / RAL 9003

Insulated DIN Rail, standard

INSULATED TERMINAL, STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Optional

Insulated DIN Rail, double

INSULATED TERMINAL, DOUBLE

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Insulated DIN Rail, screwless

INSULATED TERMINAL, SCREWLESS

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Insulated DIN Rail, Australian standard

INSULATED TERMINAL, AUSTRALIAN STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Lock with Key for Distribution Boards

C SERIES ENCLOSURE LOCK
