Tehnoplast

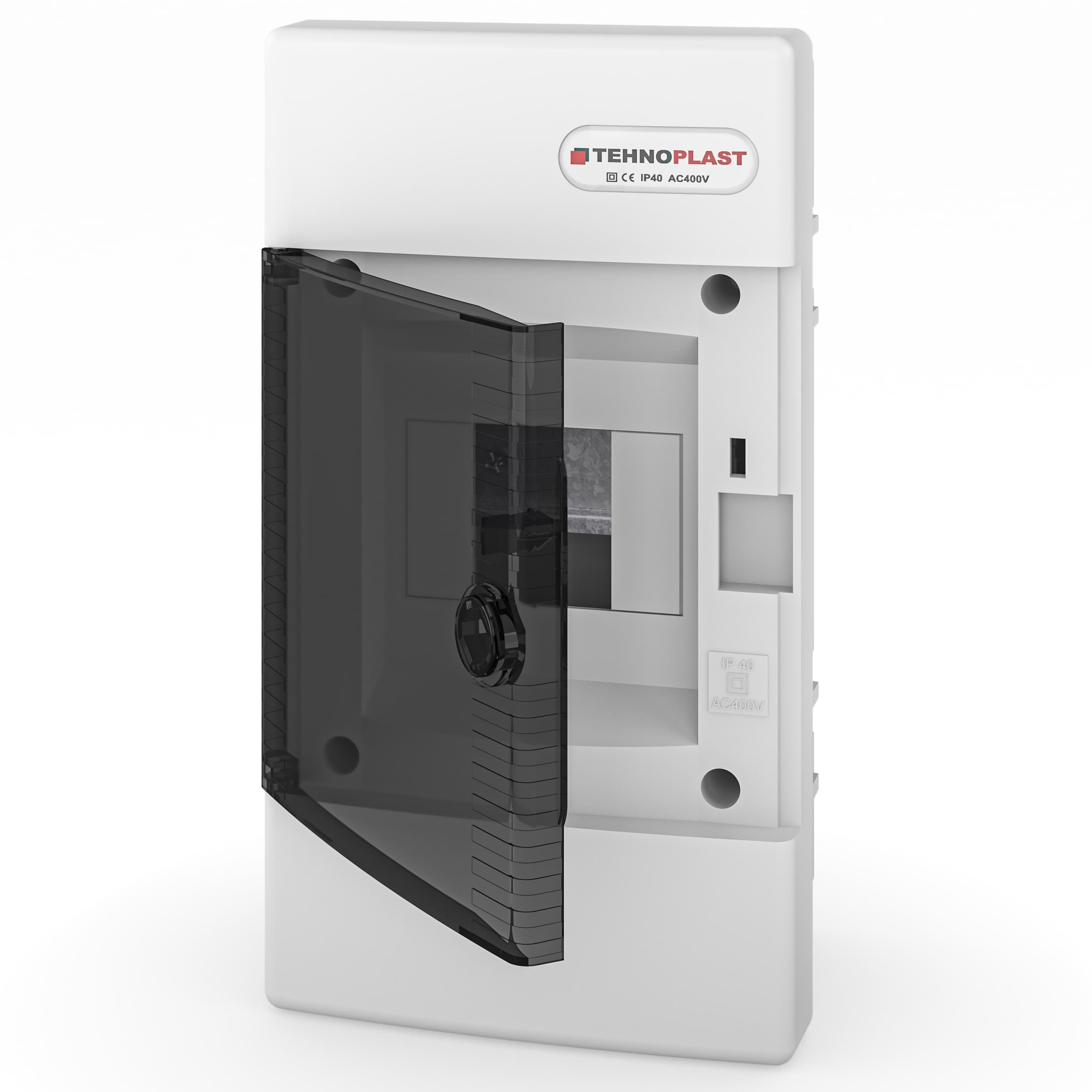

U4C

U4C

TypeFlush mounting
Dimensions232 x 139 x 99
Number of modules4
N, PE terminal count2x4

Door color

IP40
Protection Class II
AC 400 V

Distribution boards come equipped with all necessary parts for installation:

  • DIN rail
  • Insulated terminal for grounding and neutral
  • Blank space cover
  • Mounting accessories
  • Installation and usage instructions

* Additional clamps available upon customer request

Comes with

Blank Space Cover / PP

Blank Space Cover, Material PP

Material: PP; Color: RAL 7035 / RAL 9003

Insulated DIN Rail, standard

Insulated Terminal, Standard

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Optional

Insulated DIN Rail, double

Insulated Terminal, Double

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Insulated DIN Rail, screwless

Insulated Terminal, Screwless

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Insulated DIN Rail, Australian standard

Insulated terminal, Australian standard

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Lock with Key for Distribution Boards

Lock For Enclosures 3

For series D
