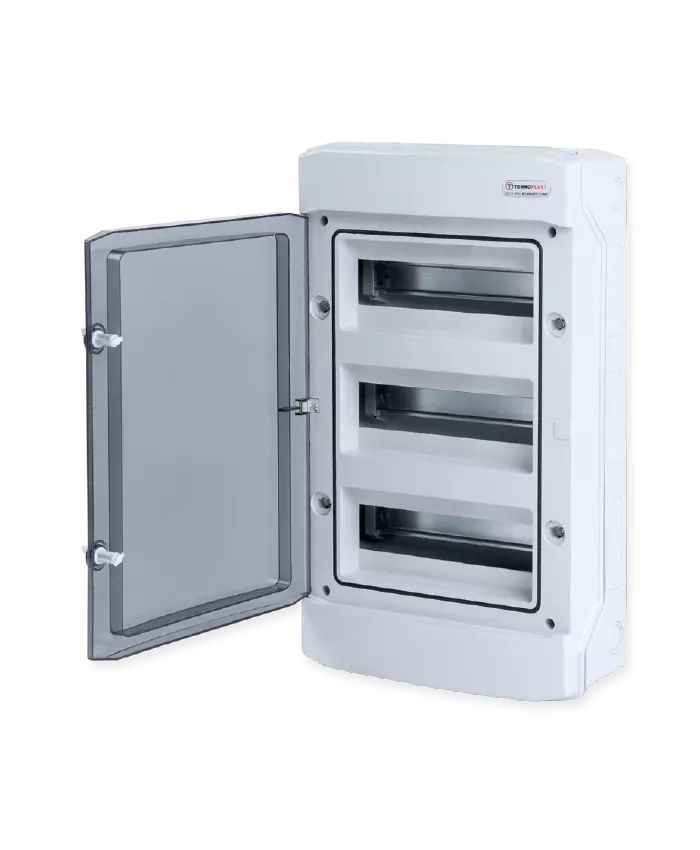

N 36 D

  • DIN rail
  • Insulated terminals, neutral and ground
  • Cover for blank space
  • Installation accessories
  • IP65 protection caps.
  • Manual instruction
  • * Additional terminal upon request
Material Acrylonitrile acrylic styrene
Color RAL 7035
Door Polycarbonate
Color Transparent
Glow wire test 650°C
Terminal holder Self extinguish material
Glow wire test 960°C
Temperature -25°C / +60°C
Rated voltage AC 400V / DC 1500V
According to IEC 60670 / IEC 62208
UV stabilnost Yes
Halogen free Yes
A 534 mm
B 319 mm
C 144 mm
D 125 mm
E 210 mm
F 380 mm

Included

Cover for the empty place / PP

Included

Insulated terminal, standard

Optional

Insulated terminal, double Australian type

Optional

Insulated screwless terminal

Optional

Rubber gommets

Optional

Lock for enclosures
