Tehnoplast

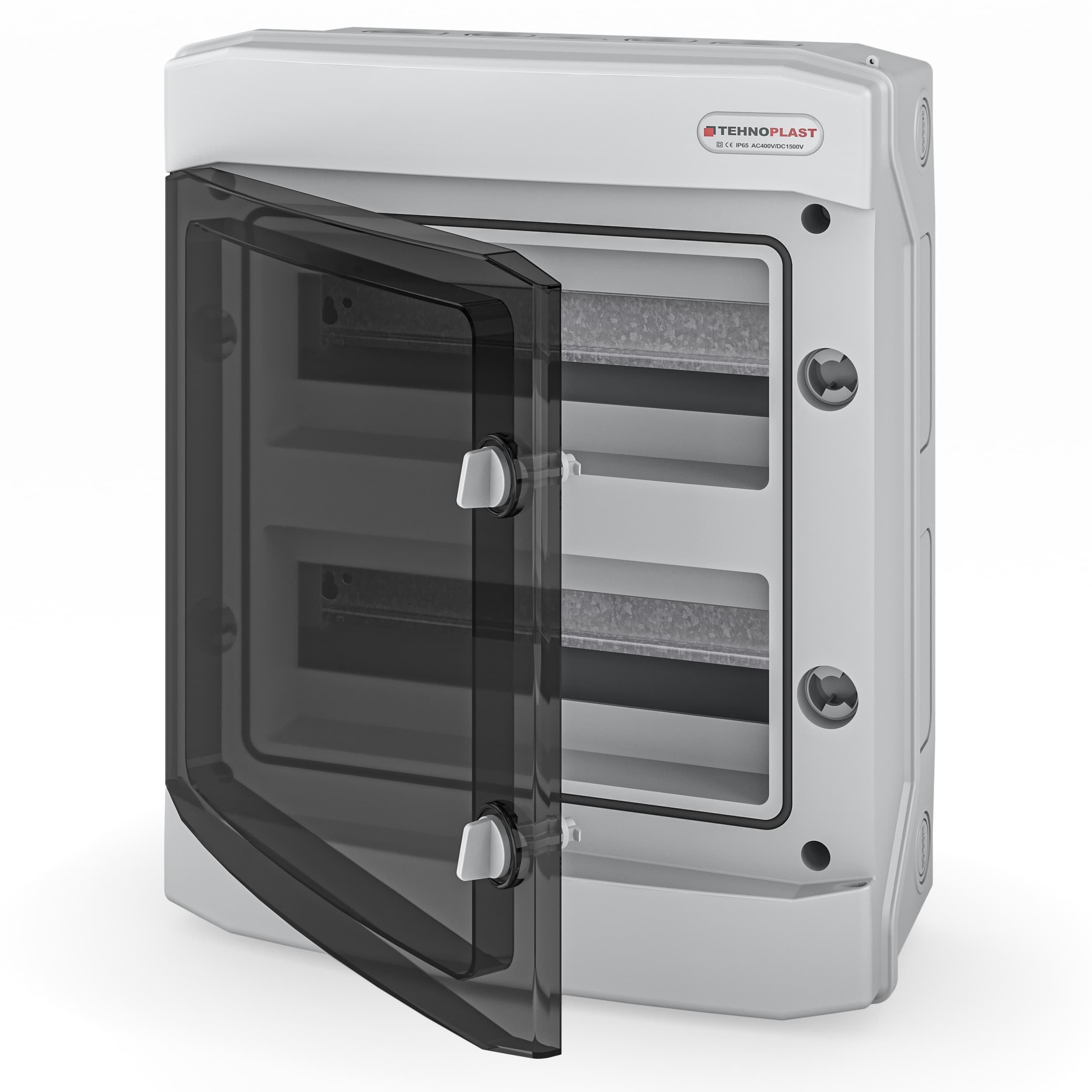

N 24 D

N24D

TypeSurface mounting
Dimensions384 x 319 x 144
Number of modules24
N, PE terminal2x13
IP65
Protection Class II
IK08
AC 400 V
Glow Wire 650°C
UV Resistant
Indoor Use
Outdoor Use
Surface Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Insulated terminal, neutral and ground*
  • Blank space cover
  • Installation accessories
  • Protective cap
  • Assembly instructions

* Additional terminal upon request

Comes with

BLANK SPACE COVER GREY

BLANK SPACE COVER FOR D SERIES

Material: PP Color: RAL 7035

IZOLOVANA KLEMA STANDARD

INSULATED TERMINAL, STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Optional

IZOLOVANI TERMINAL DUPLI

INSULATED TERMINAL, DOUBLE

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Izolovana klema australijski standard

INSULATED TERMINAL, AUSTRALIAN STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

IZOLOVANA KLEMA BEZVIJACNA

INSULATED TERMINAL, SCREWLESS

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Bravica D serije

D SERIES ENCLOSURE LOCK

Gumene uvodnice

QUICK RUBBER GLANDS

For D Series Material: TPE Temperature range: -50 °C to +125 °C
