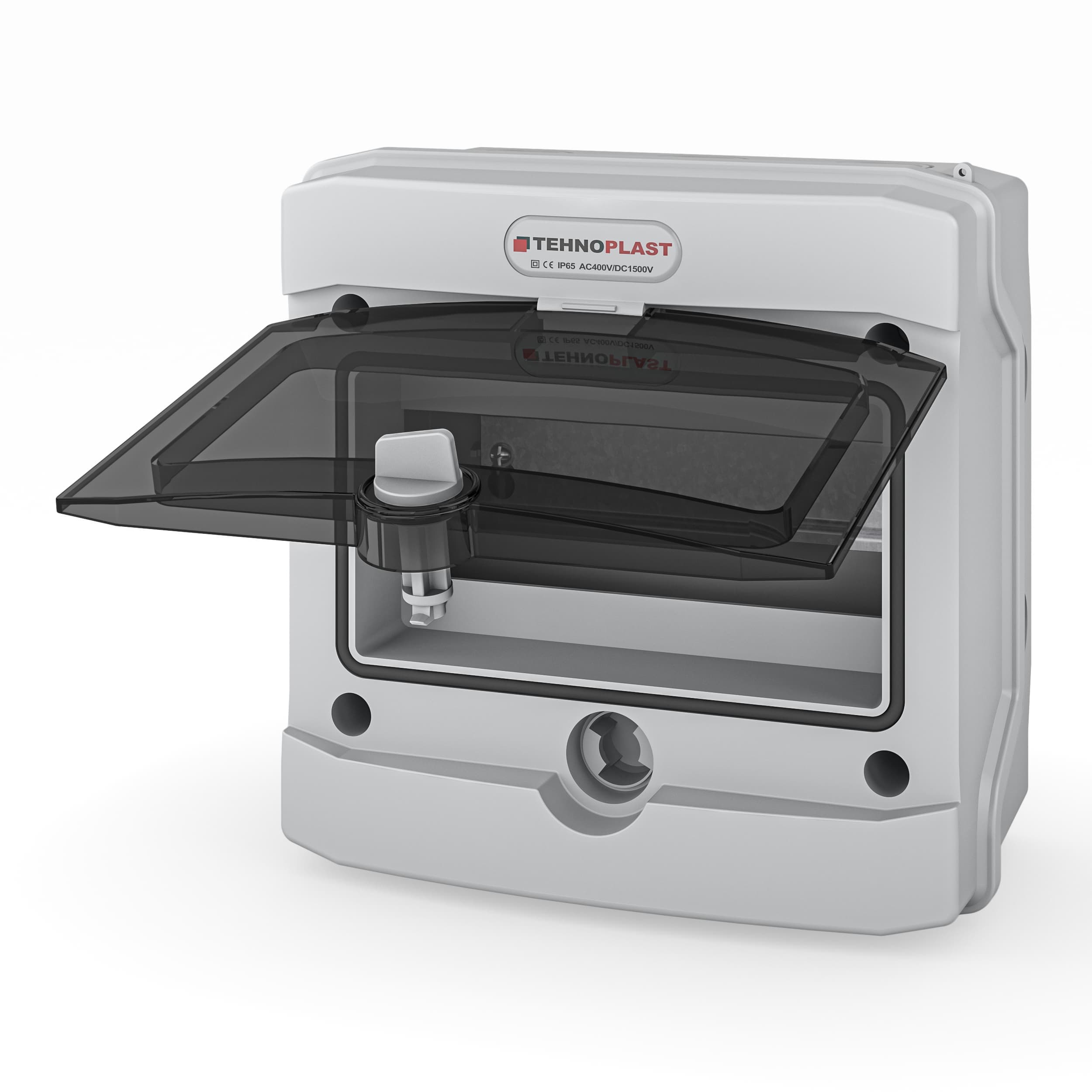

N8D
N 8 D - Technical Drawing
N 8 D - Technical Drawing
N8D
N 8 D - Technical Drawing
N 8 D - Technical Drawing

N8D

TypeSurface mounting
Dimensions201 x 202 x 120
Number of modules8
PE, N terminal count2x8

Characteristics

IP65
Protection Class II
In63A
AC400V
UV Resistant
Glow Wire 650°C
EU Compliance
Surface Mounting
Indoor Use
Outdoor Use

Distribution boards come equipped with all necessary parts for installation:

  • DIN rail
  • Insulated terminal for grounding and neutral
  • Blank space cover
  • Mounting accessories
  • Plastic screw for maintaining IP65 protection
  • Installation and usage instructions

* Additional clamps available upon customer request

Comes with

Blank Space Cover / PP

Blank Space Cover / PP

Insulated DIN Rail, standard

Insulated DIN Rail, standard

Compatible with

Insulated DIN Rail, double and Australian standard

Isolated DIN Rail, double and Australian standard

Insulated DIN Rail, screwless

Insulated DIN Rail, screwless

Rubber Grommets

Rubber Grommets

Lock with Key for Distribution Boards

Lock with Key for Distribution Boards
