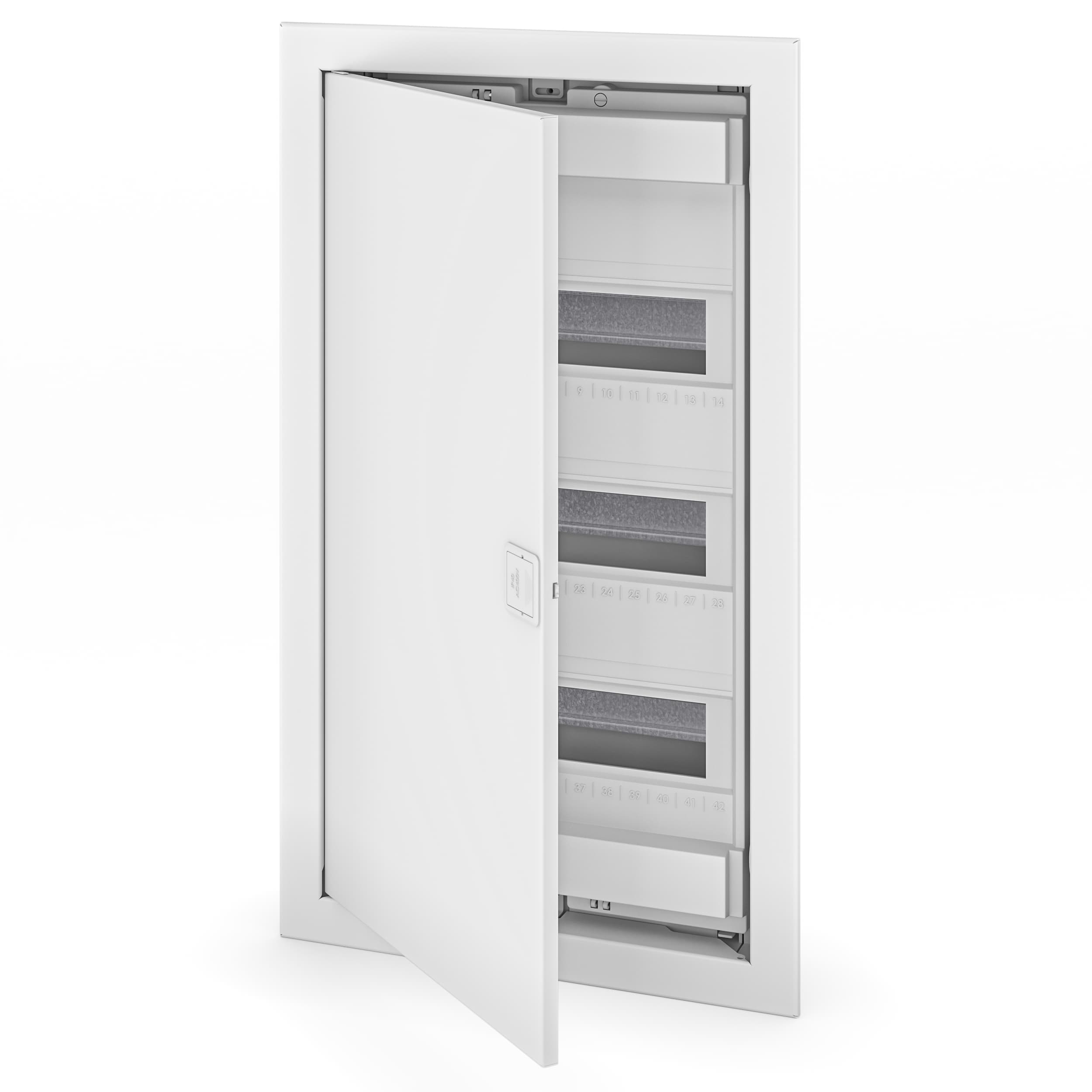

U36E

U36E

TypeFlush mounting
Dimensions592 x 346 x 96
Number of modules36+6
N, PE terminal count2x15
IP40
IK08
Protection Class I
AC 400 V
Glow Wire 650°C
Glow Wire 850°C
Indoor Use
Flush Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Insulated terminal, neutral and ground*
  • Blank space cover
  • Installation accessories
  • Assembly instruction

* Additional terminal upon request

Comes with

Blank Space Cover / PP

BLANK SPACE COVER

Material: PP Color: RAL 7035 / RAL 9003

Insulated DIN Rail, standard

INSULATED TERMINAL, STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Optional

Insulated DIN Rail, screwless

INSULATED TERMINAL, SCREWLESS

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Insulated DIN Rail, double

INSULATED TERMINAL, DOUBLE

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Insulated DIN Rail, Australian standard

INSULATED TERMINAL, AUSTRALIAN STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Lock with Key

E, F, ALFA SERIES ENCLOSURE LOCK

Housing Connector, vertical joint

CONNECTION BRACKET, HORIZONTAL

For series: E, F, F ME, and COMBO Material: PS Dimensions: 48 x 24 x 33 mm

Housing Connector, horizontal joint

CONNECTION BRACKET, VERTICAL

For series E, F, F ME i COMBO Material: PS Dimensions: 18 x 48 x 155 mm

CONNECTION BRACKET HOR 2

CONNECTION BRACKET HORIZONTAL 2

For series: E, F, F ME and COMBO Material: PA Dimensions: 127 x 23 x 13 mm
