Tehnoplast
U12F

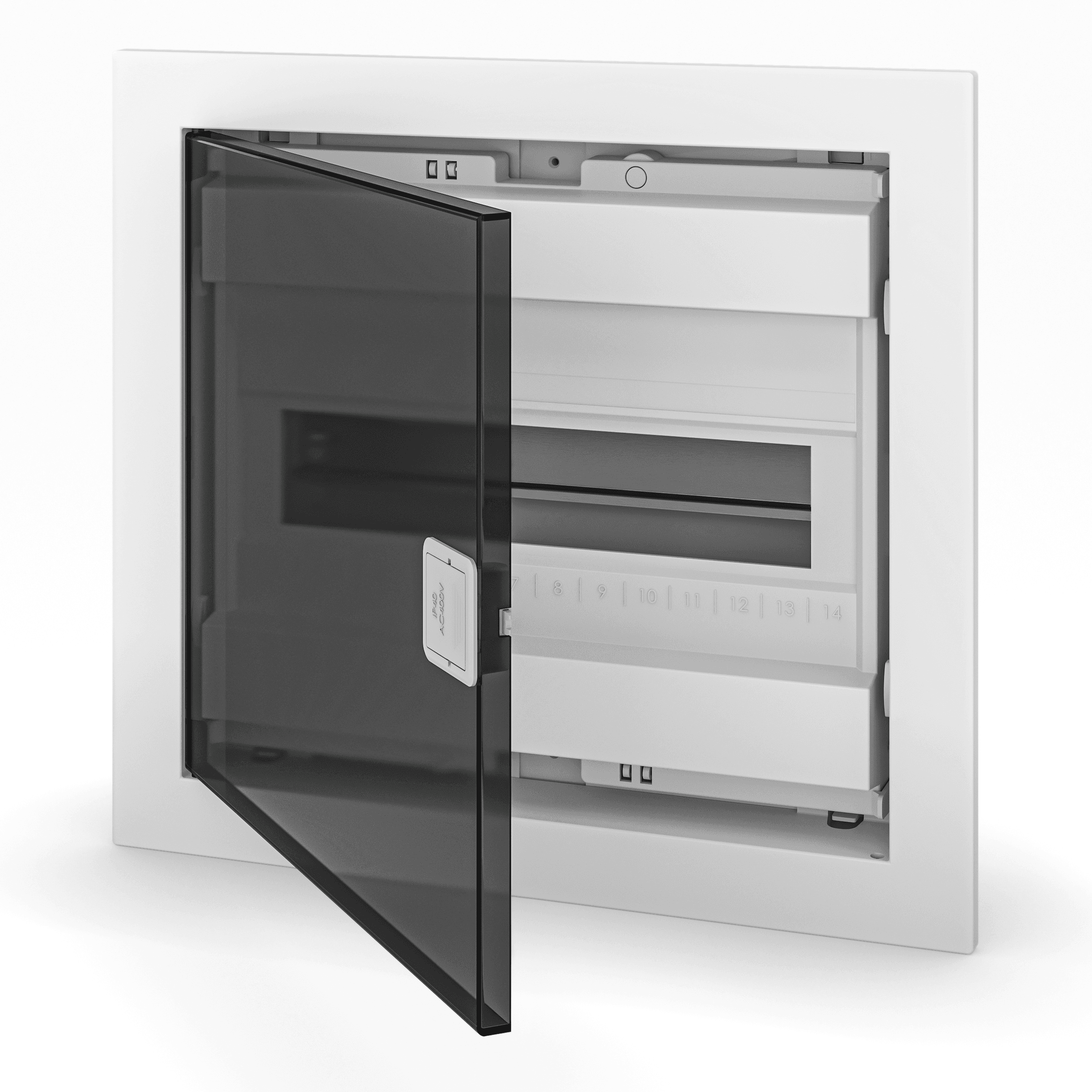

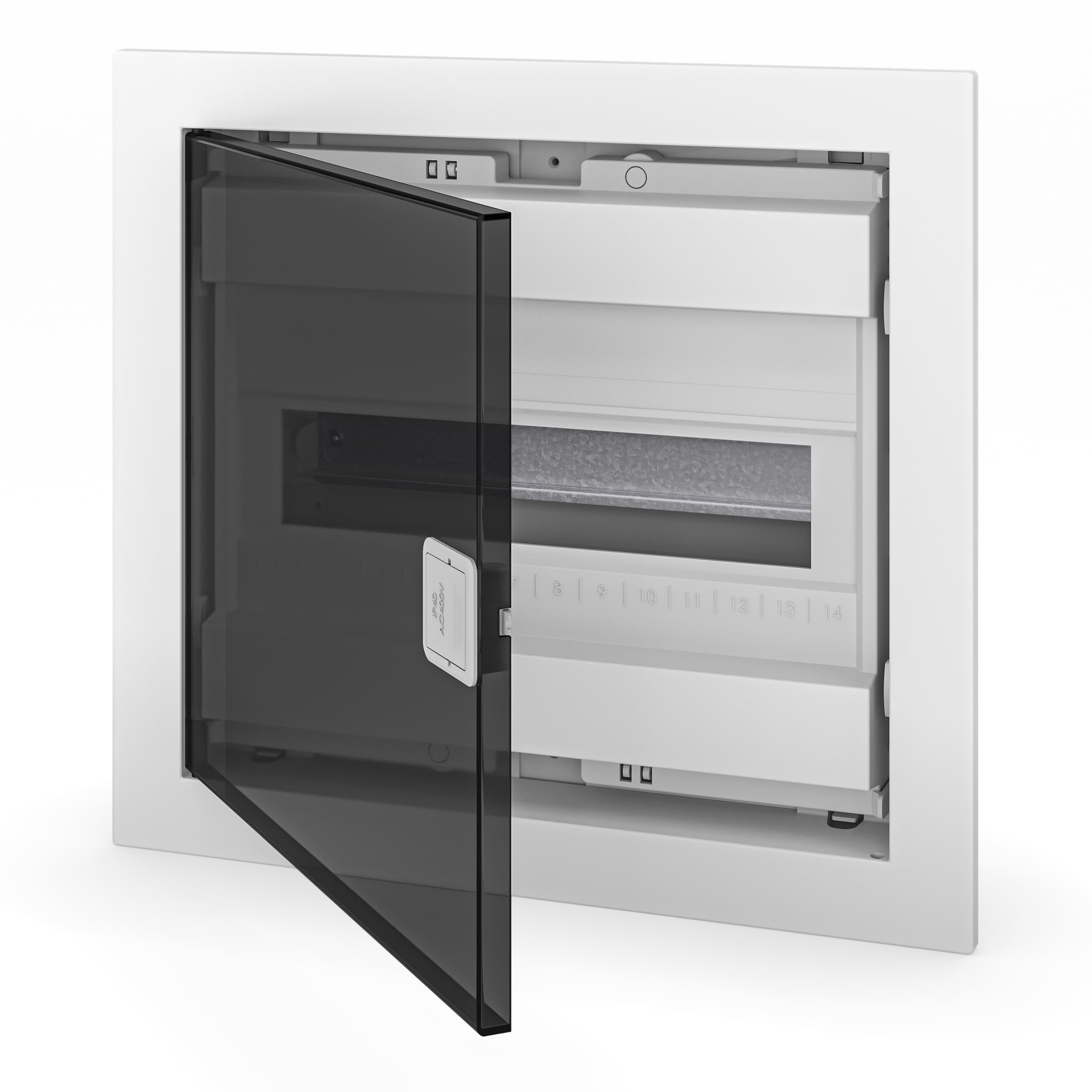

U12F ME

TypeFlush mounting
Dimensions317 x 346 x 96
Number of modules12+2
N, PE terminal count2x10
IP40
Protection Class II
AC 400 V
EU Compliance
Glow Wire 650°C
Glow Wire 850°C
Indoor Use
Flush Mounting

Distribution boards come equipped with all necessary parts for installation:

  • DIN rail
  • Isolated terminal for grounding and neutral
  • Blank space cover
  • Mounting accessories
  • Installation and usage instructions

* Additional terminals available upon customer request

Comes with

Blank Space Cover / PP

Blank Space Cover, Material PP

Material: PP; Color: RAL 7035 / RAL 9003

Insulated DIN Rail, standard

Insulated Terminal, Standard

Flammability: Self-extinguish; Glow wire test: 960 °C; For enclosures of 12 modules and more

Optional

Housing Connector, horizontal joint

Connection Bracket, Vertical

For series E, F, F ME i COMBO; Material: PS; Dimensions: 18 x 48 x 155 mm

Housing Connector, vertical joint

Connection Bracket, Horizontal

For series: E, F, F ME, and COMBO; Material: PS; Dimensions: 48 x 24 x 33 mm

Lock with Key

Lock for Enclosures 3

For series E, F, F ME, ALFA

CONNECTION BRACKET HOR 2

Connection Bracket Horizontal 2

For series: E, F, F ME and COMBO; Material: PA; Dimensions: 127 x 23 x 13 mm
