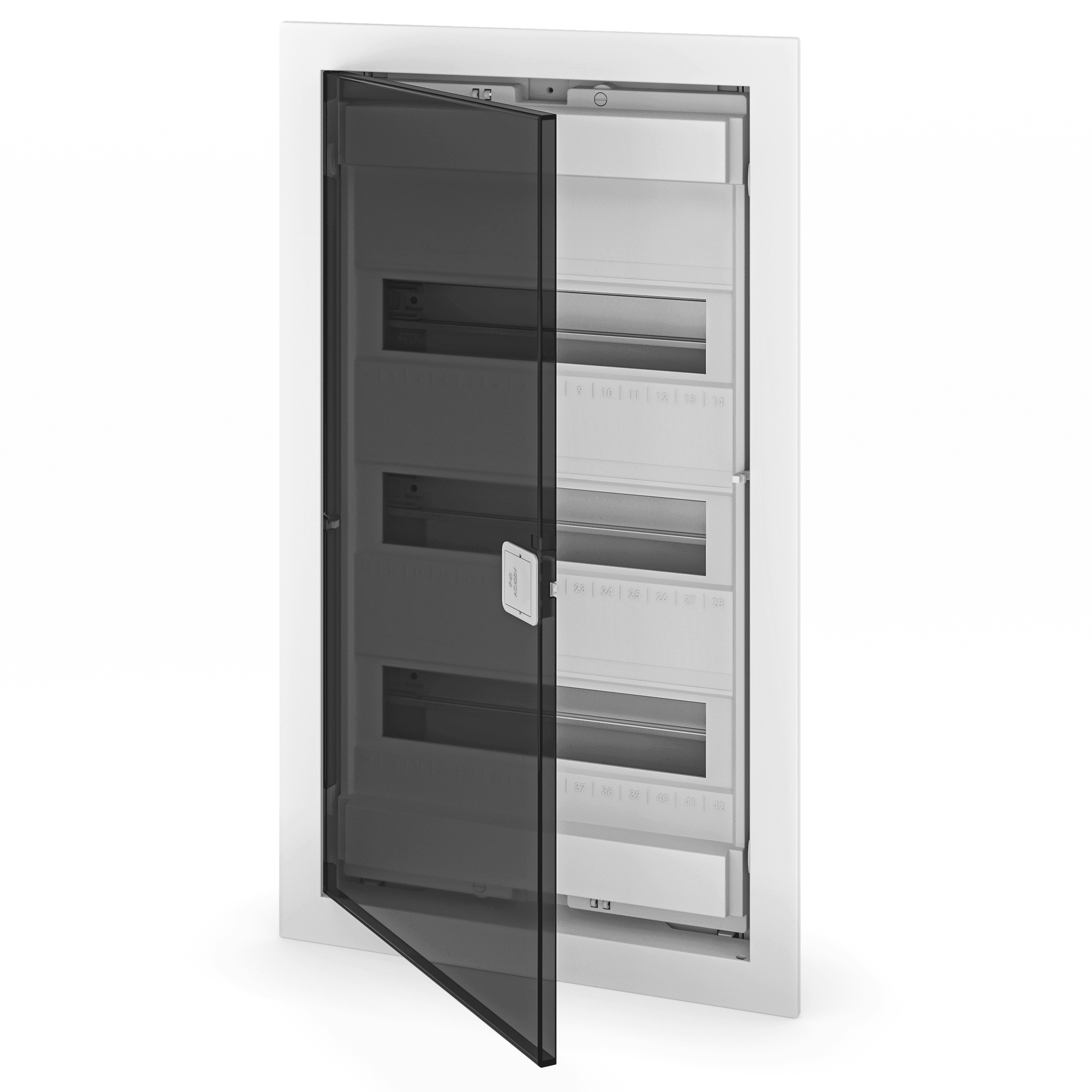

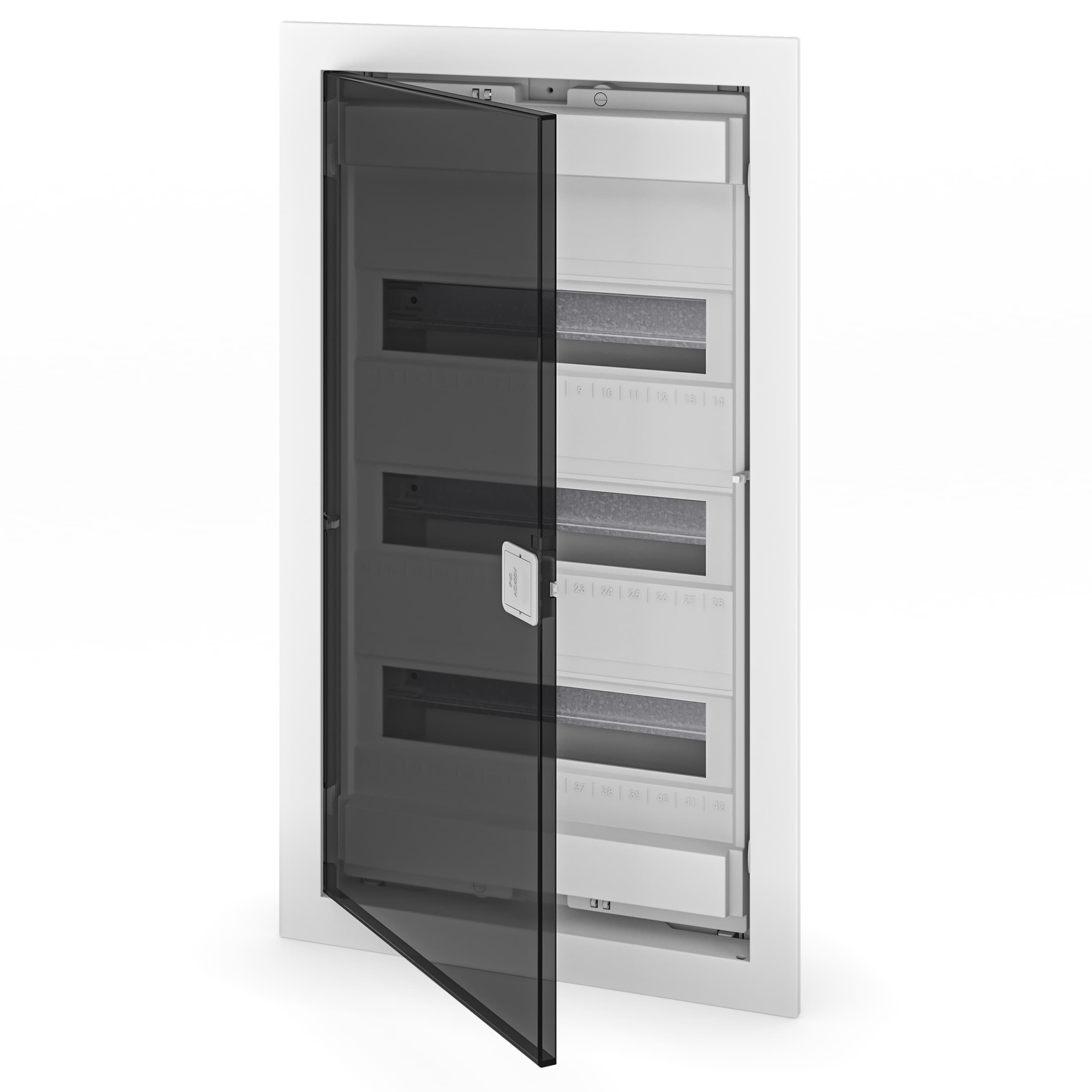

U36F

U36F

TypeFlush mounting
Dimensions592 x 346 x 96
Number of modules36
N, PE terminal2x15

Door color

IP40
IK07
Protection Class II
AC 400 V
Glow Wire 650°C
Glow Wire 850°C
Indoor Use
Flush Mounting
EU Compliance

Enclosures come fully assembled with all necessary parts, including:

  • DIN rail
  • Isolated terminal for grounding and neutral*
  • Blank space cover
  • Installation accessories
  • Assembly instruction

* Additional terminal upon request

Comes with

BLANK SPACE COVER WHITE

BLANK SPACE COVER

Material: PP Color: RAL 7035 / RAL 9003

IZOLOVANA KLEMA STANDARD

INSULATED TERMINAL, STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Optional

IZOLOVANI TERMINAL DUPLI

INSULATED TERMINAL, DOUBLE

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

IZOLOVANA KLEMA BEZVIJACNA

INSULATED TERMINAL, SCREWLESS

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Izolovana klema australijski standard

INSULATED TERMINAL, AUSTRALIAN STANDARD

Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more

Bravica E, F, FME i ALFA serije

E, F, ALFA SERIES ENCLOSURE LOCK

VERTIKALNI VEZNIK

CONNECTION BRACKET, VERTICAL

For series E, F, F ME i COMBO Material: PS Dimensions: 18 x 48 x 155 mm

Horizontalni veznik 1

CONNECTION BRACKET, HORIZONTAL

For series: E, F, F ME, and COMBO Material: PS Dimensions: 48 x 24 x 33 mm

Horizontalni veznik 2

CONNECTION BRACKET HORIZONTAL 2

For series: E, F, F ME and COMBO Material: PA Dimensions: 127 x 23 x 13 mm
